LogicalKit
This teaching aid was designed and produced in 2018 by Jirka Roubal Jirka Roubal with the help of colleagues and pupils of secondary schools, see [1], as a newer version of the previously used Domino kit. With this tool, pupils and school students can try working with basic logic circuits, flip-flop circuits and microprocessor. School resources were used to implement this teaching aid. The cost of the components was 1 543 CZK. The implementation took 110 hours.
Interface inputs and outputs
- Inputs: 5 switches
- Outputs: 4 LEDs that represent a 4-bit binary number that is also displayed on the seven-segment display

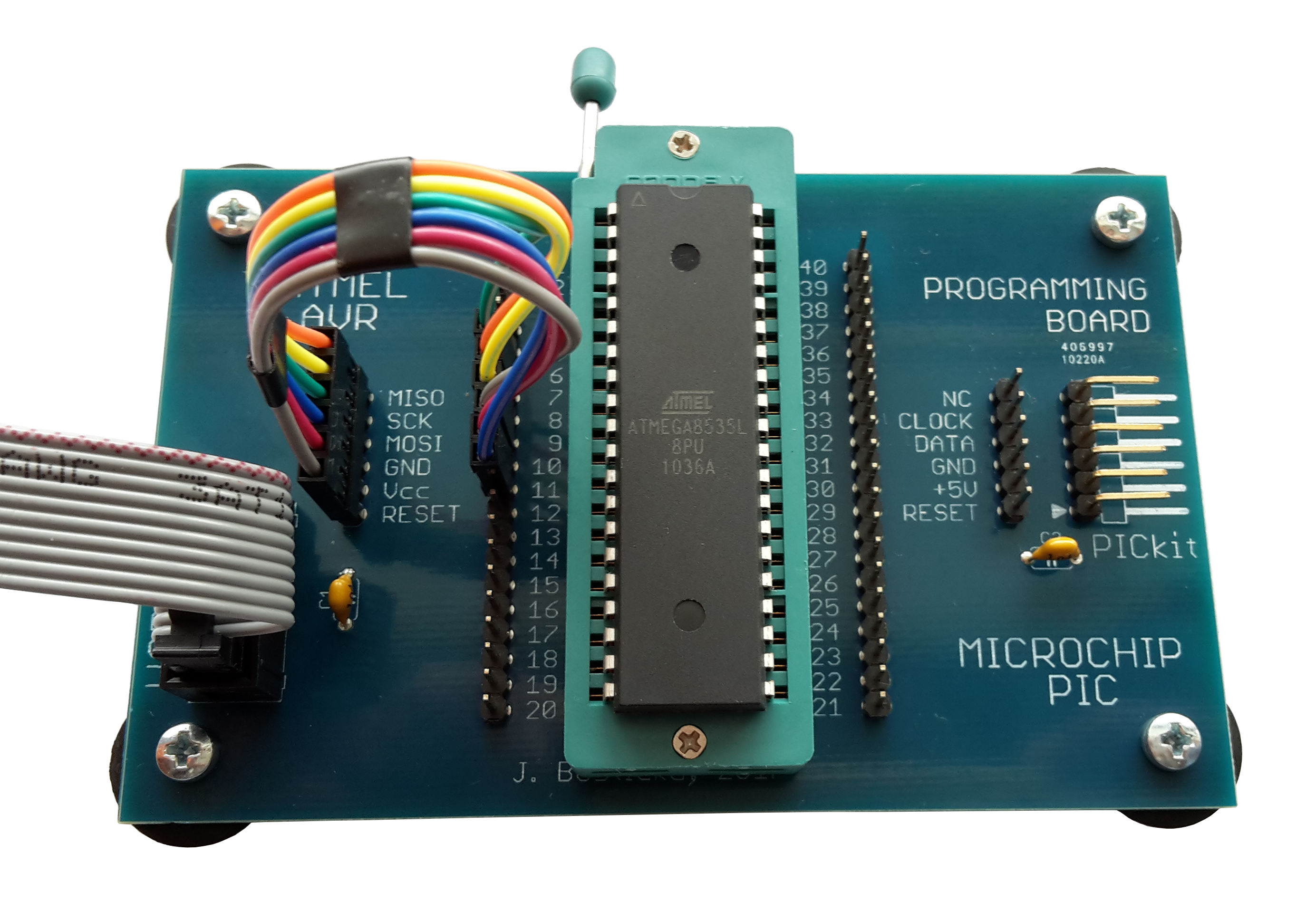

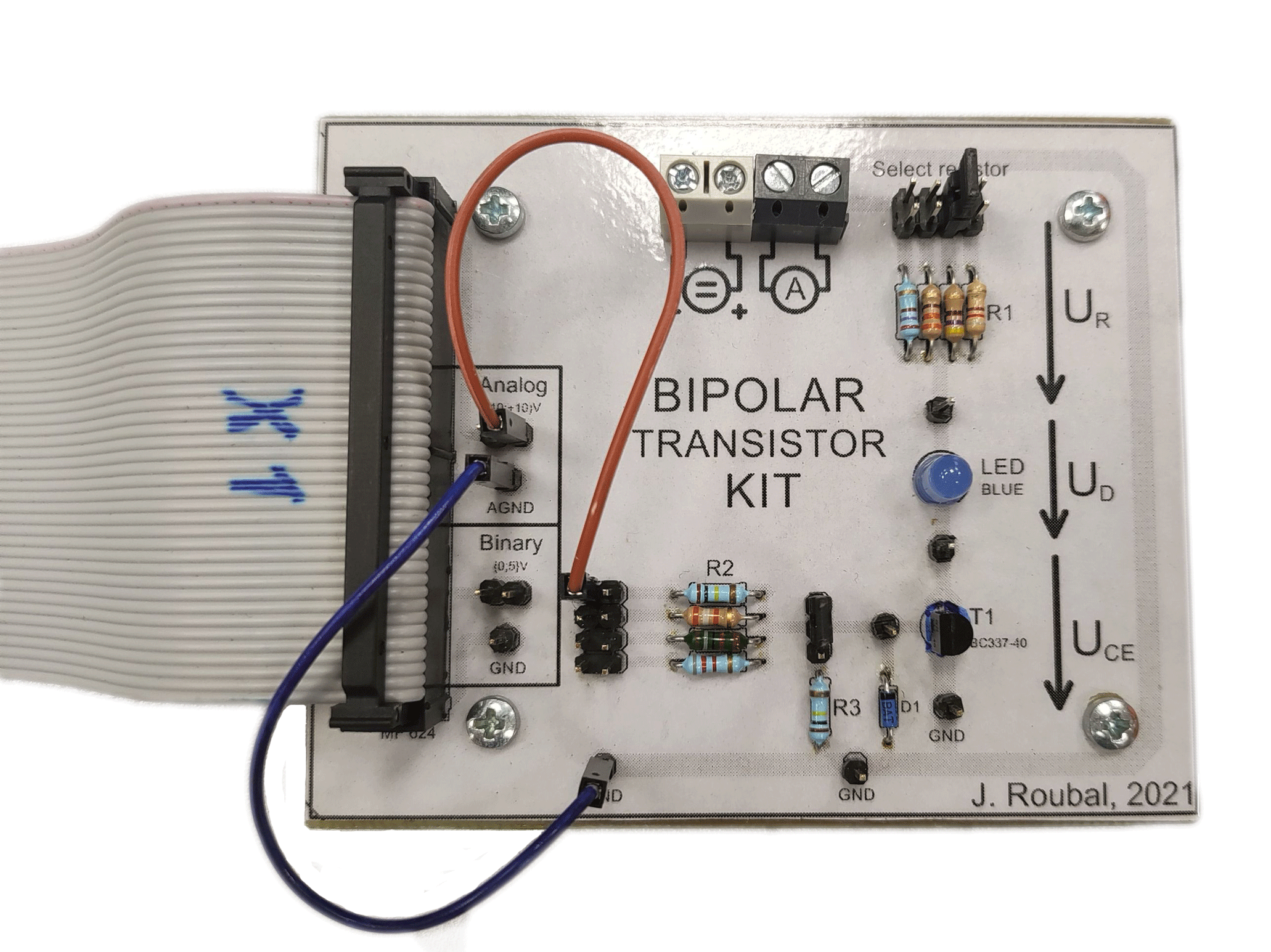

Figure 2: Bipolar Transistor Kit; Atmel AVR Start Kit; Microprocessor Programming Board
Used for teaching
- SS: simple logical combination functions
- SS: simple logic sequence functions
- SS: basic work with a microprocessor
- TTS: design and testing of combinational and sequential logic control
- TTS: microprocessor programming
Links
[1] Roubal, J. a kol. Logical Kit – manual, VOŠ, SŠ, COP Sezimovo Ústí, 2018.
[2] MOODLE VOŠ [online], ⟨https://moodleVOS.copsu.cz/⟩.
