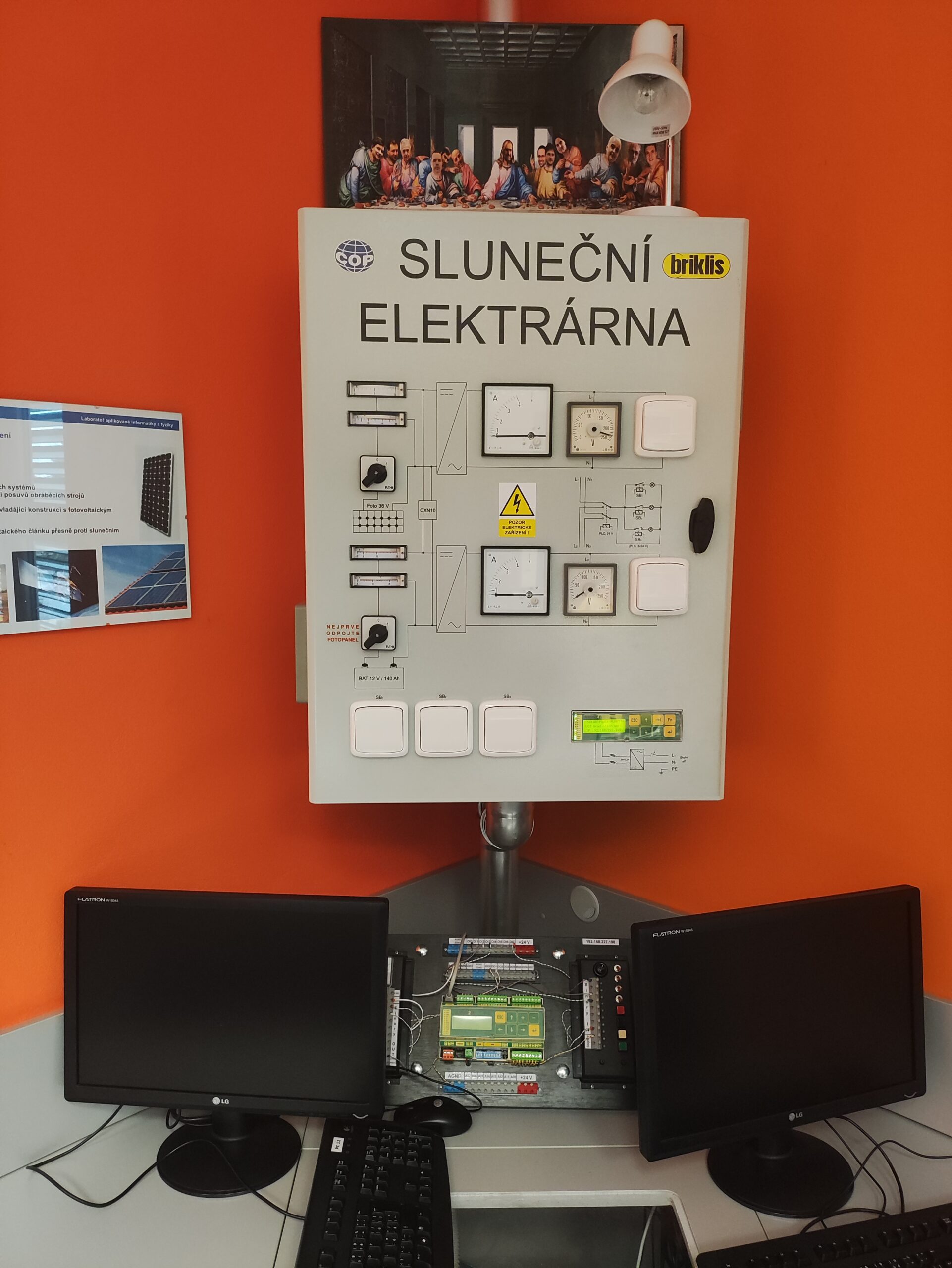

Photovoltaic power plant Model

The creation of the model of the photovoltaic power plant was the only one that dragged on for several years. Several students took turns on this project, so the results of their work are summarized in the absolvent thesis of Martin Hrubý, who defended his work in the school year 2022/2023. The cost of the components was 91 632 CZK. The implementation lasted from 2011, see [1].

Pupils and students can use this model to measure how efficient photovoltaic systems are. The model allows the appliance to be connected via a conventional 230 V socket. Also, a part of the classroom lighting is connected to the power plant model, which can additionally be controlled via a web interface [1]. The measured quantities are stored in the AMiNi4DW2 PLC, which also controls the fan in the control cabinet based on the internal temperature. It is also worth mentioning the manual [2].

Vizualization of a Photovoltaic power plant Model

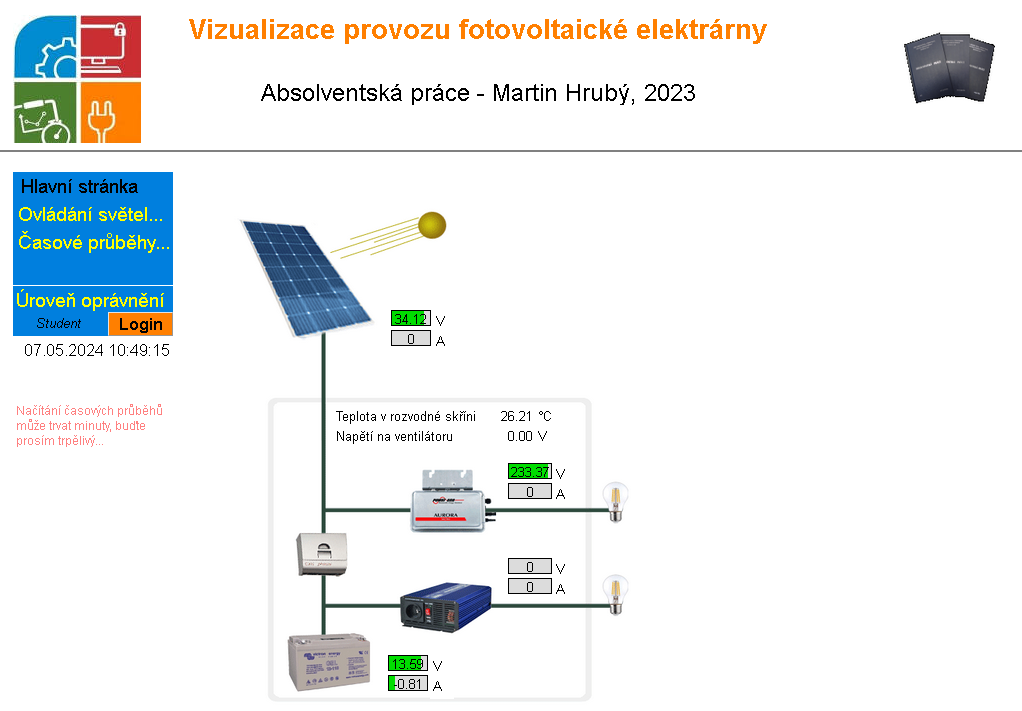

Figure 2: Visualization of the operation of a solar power plant[1], [3]

Interface inputs and outputs

Inputs: sunlight, buttons for controlling lights, load (sockets for 230 V appliances), ambient temperature
Outputs: voltages and currents, cabinet temperature, fan voltage, classroom lights

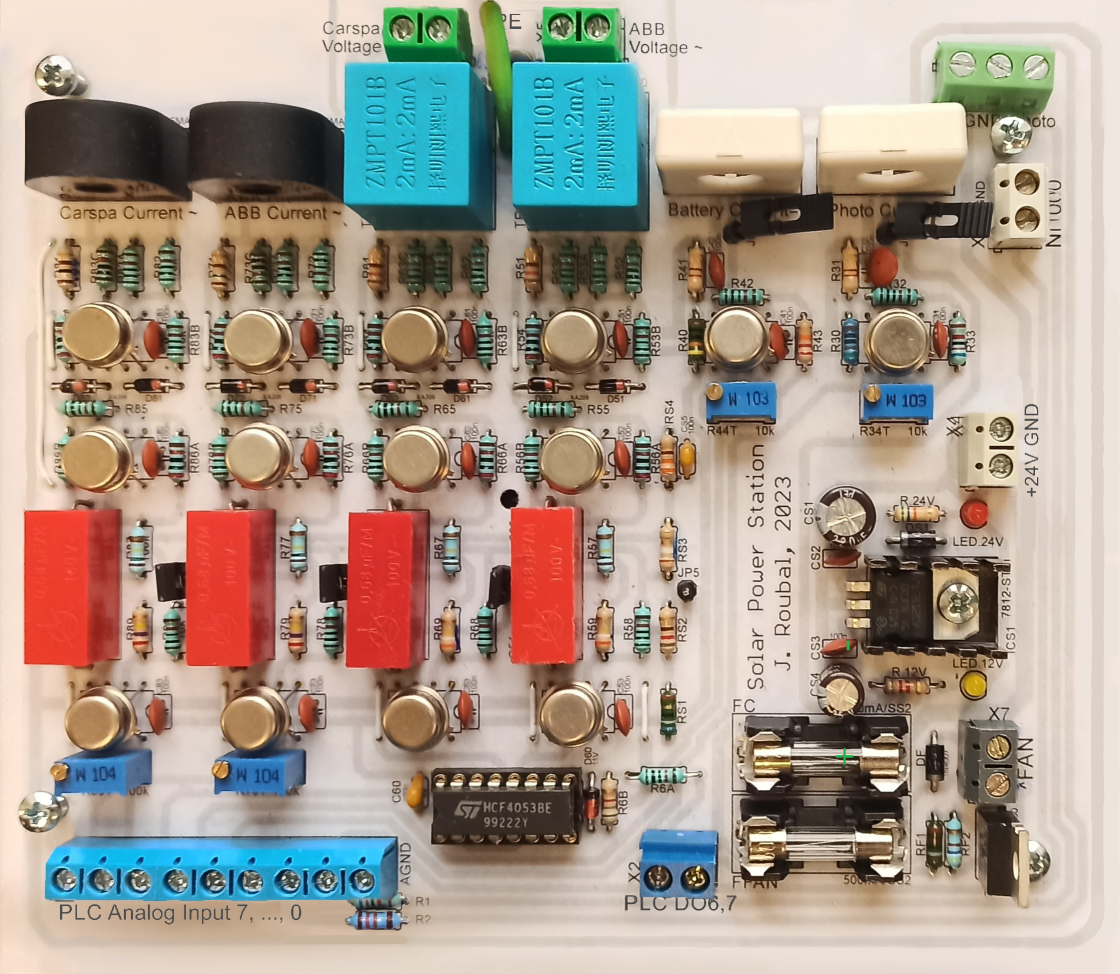

Figure 3: Converter for voltage and current measurement and temperature control by PLC - taken from [1]

Used for teaching:

SS: demonstration of the function of a photovoltaic system
SS: presentation of PCB manufacturing, use of operational amplifiers
SS: measurement of the load characteristics of a photovoltaic panel
TTS: demonstration of PLC programming and AWEB web server
TTS: design of cooling control by PID controller

Links

[1] Hrubý, M. Vizualization of Solar Power Plant Operation, (Absolvent thesis), VOŠ, SŠ, COP Sezimovo Ústí, 2023.

[2] Roubal, J. Extending the visualization of the solar power plant operation [online], ⟨http://fve.copsu.cz/⟩, 2024.

[3] Vaněk, M., Kopecký, J. a Kolář, D. Instructions for programming the AWEB web server, (Semestral project), VOŠ, SŠ, COP Sezimovo Ústí, 2024.

[4] MOODLE VOŠ [online], ⟨https://moodleVOS.copsu.cz/⟩.
