Communication Interface ArduCOP

The ArduCOP communication interface was created as part of Absolvent thesis by Miroslav Kubů at the Tertiary technical school in the school year 2022/2023. This interface was designed as a simpler alternative to the MF 624 multifunctional input/output card from HumuSoft, spol. s r. o. The interface is fully functional with the MF 624 simulator; with other laboratory models the interface is currently in test mode. Own resources were used to implement this teaching aid. The cost of the components was 3 737 CZK. The implementation took 624 hours.

Interface inputs and outputs

16 TTL binary inputs
16 binary TTL outputs
8 analog inputs ⟨-10, 10⟩ V
8 analog outputs ⟨-10, 10⟩ V
1 input from quadrature encoder
8 PWM outputs

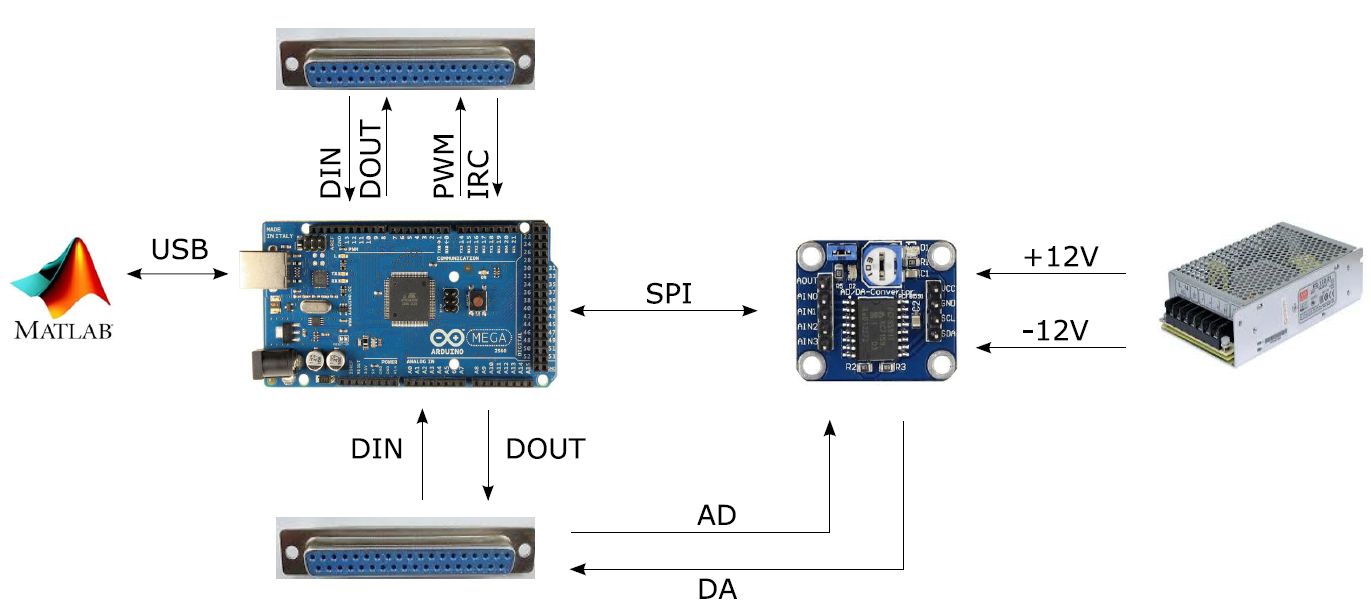

Figure 2: Block diagram of the ArduCOP interface - taken from [1]

Used for teaching

SS: work with binary signals, analogue signals, encoder signals and PWM signals
TTS: work with binary signals, analogue signals, encoder signals and PWM signals

Links

[1] Kubů, M. Interface for Communication of the Matlab/Simulink Program with external devices, (Absolventská práce), VOŠ, SŠ, COP Sezimovo Ústí, 2023.

[2] Humusoft, spol. s r. o. Measuring cards [online]. [cit. 2024-04-26], ⟨https://www.humusoft.cz/⟩, 2024.

[3] MOODLE VOŠ [online], ⟨https://moodleVOS.copsu.cz/⟩.
